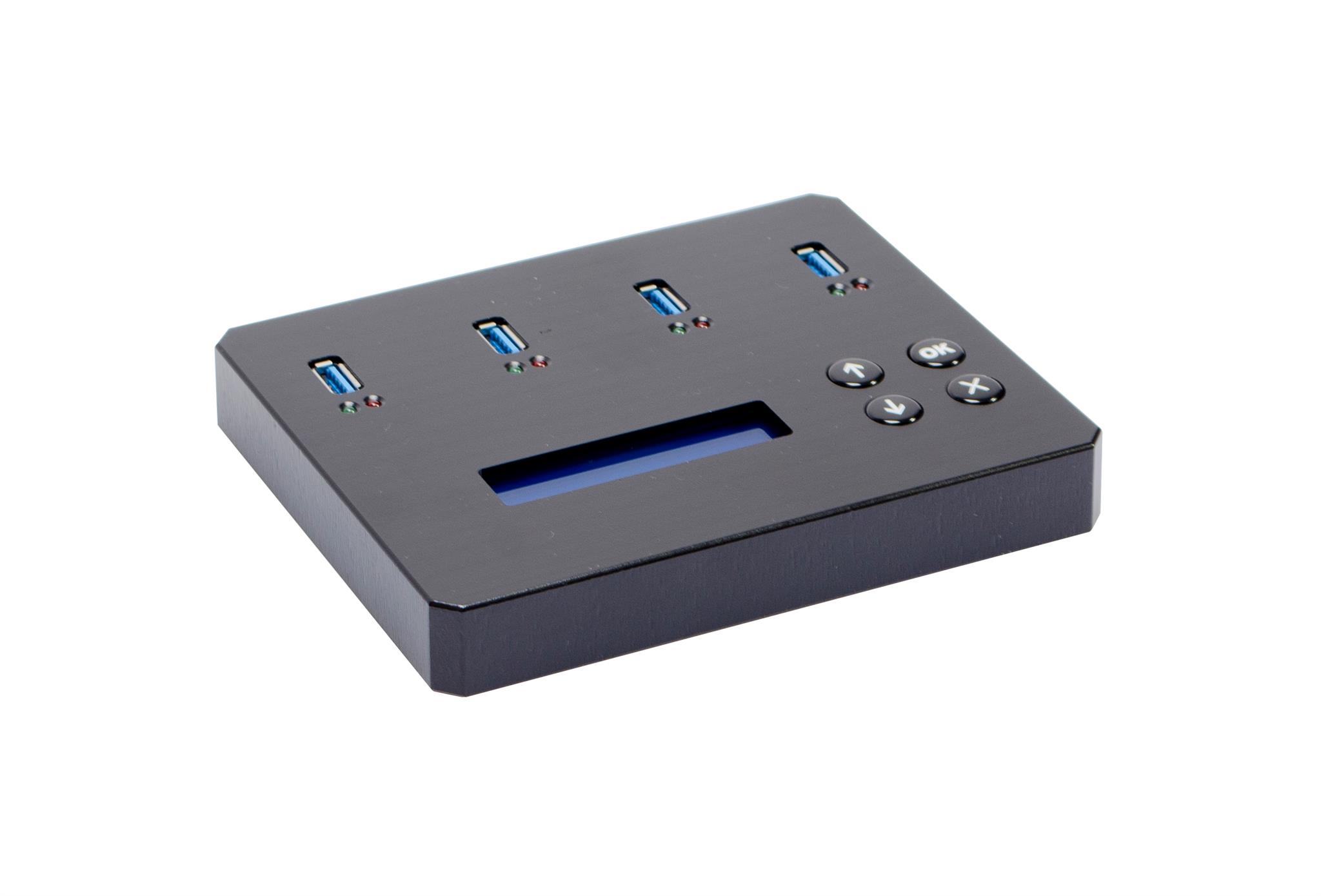

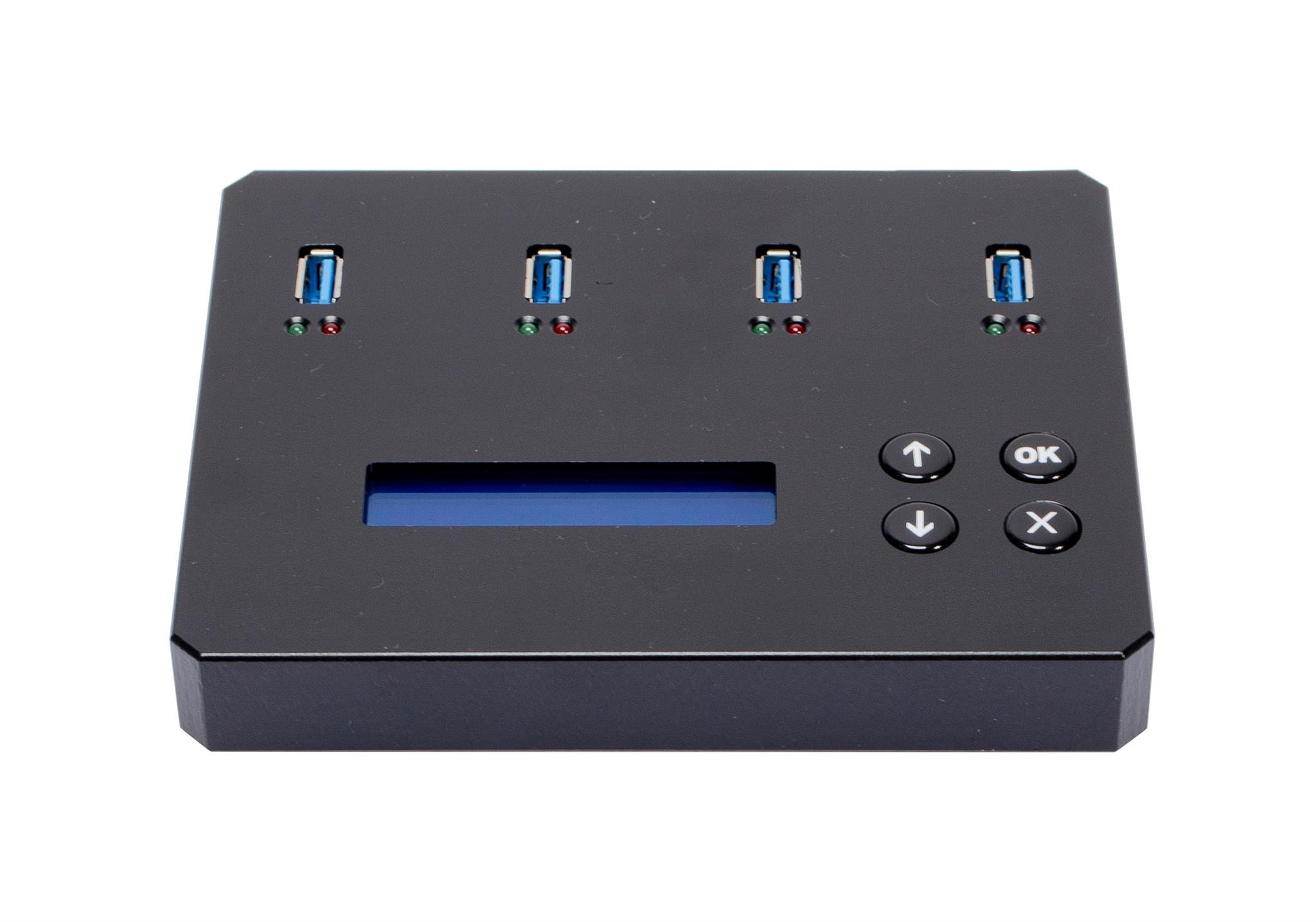

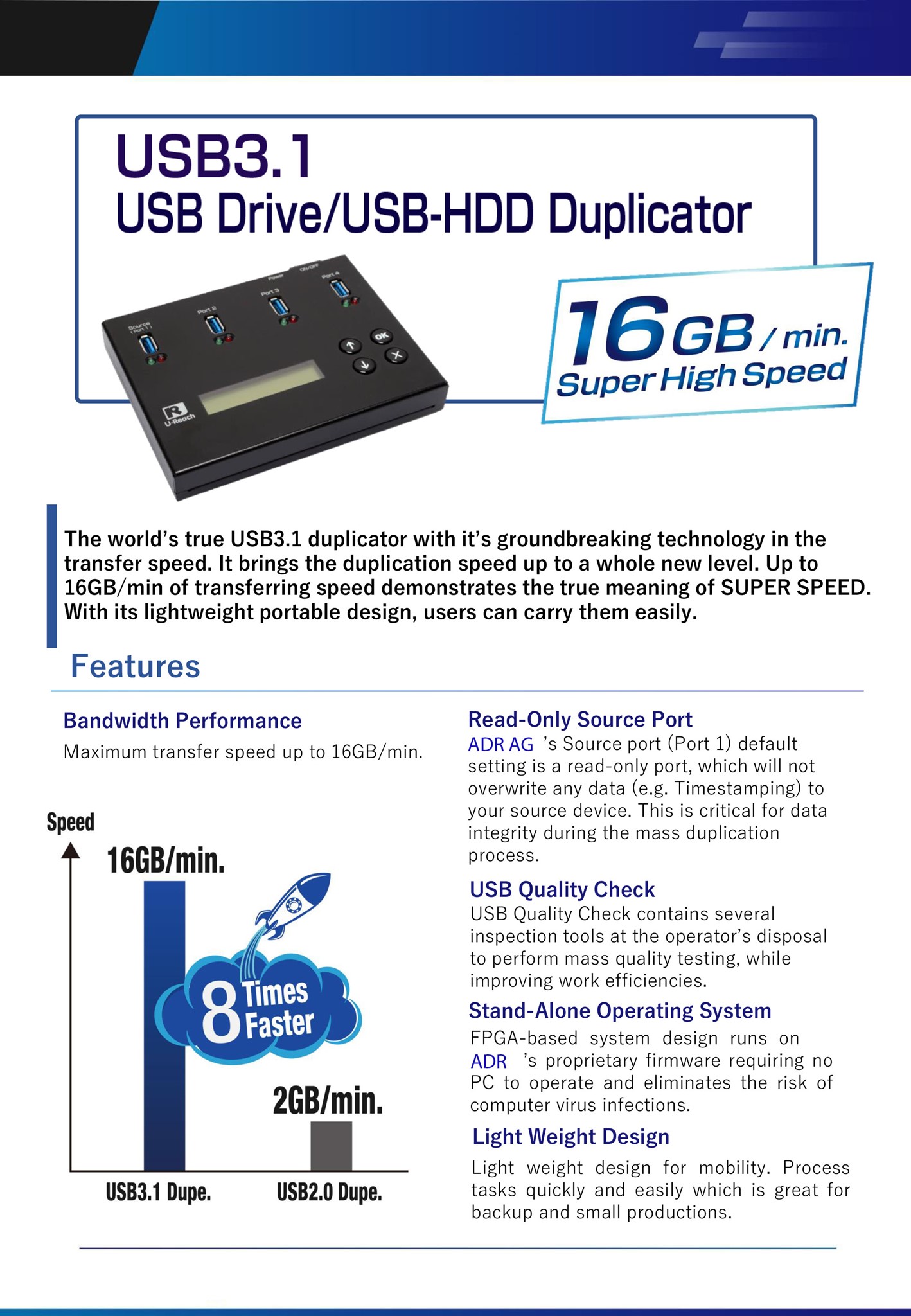

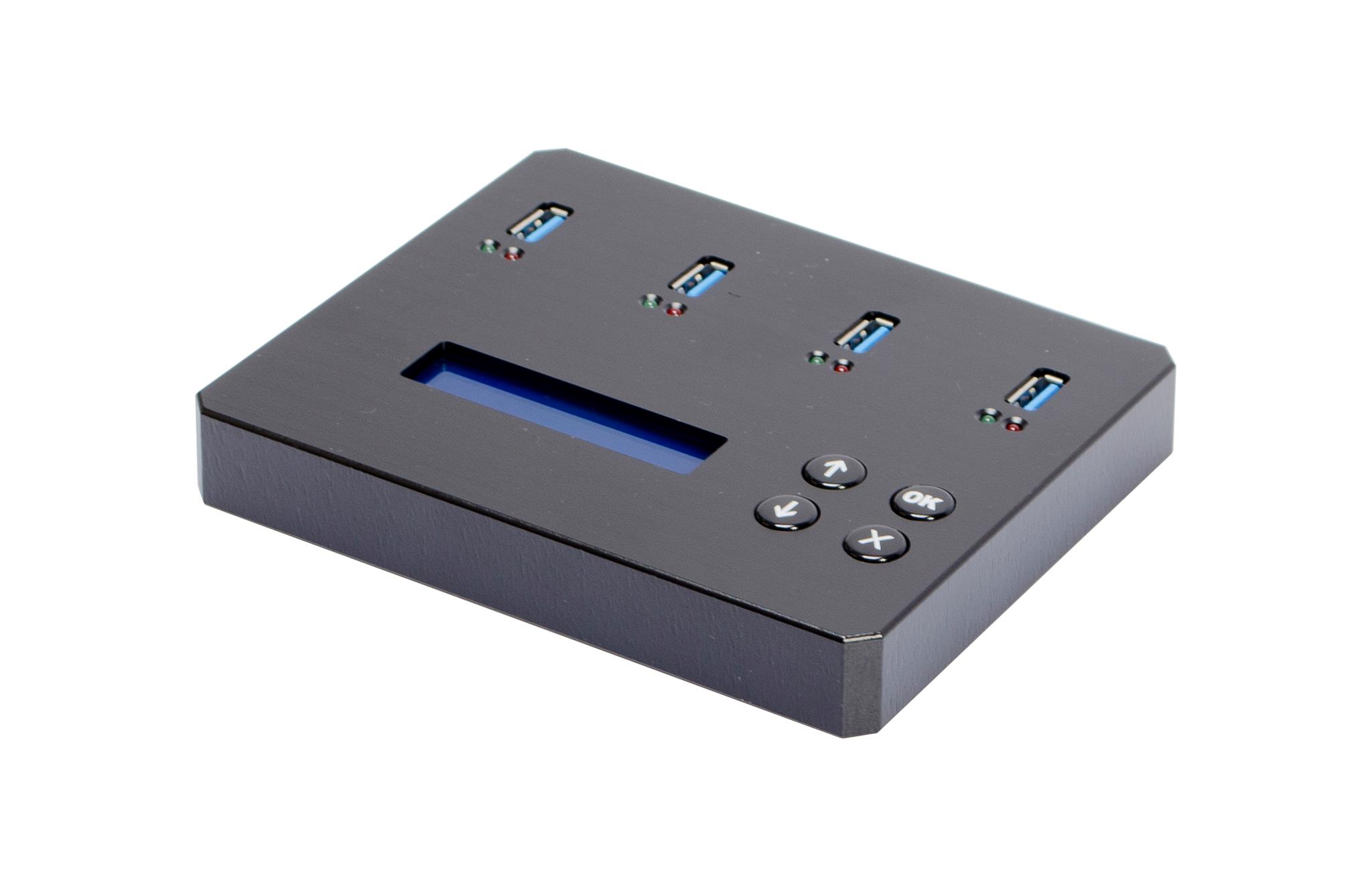

About the ADR USB Producer 3.1 COMPACT
The ADR USB Producer COMPACT is the smallest and fastest USB 3.1 duplicator in the market.
You can copy your USB 3.1 thumbdrives or USB Harddrives very easy and fast.
Once you plug in your master and targets devices you just press the OK button and the system copies your data.
The exact copy speed varies regarding to the USB devices you are using.
In many projects the media itself is the bottleneck of the production.
With its groundbreaking technology in speed there is no other system that can match the Highspeed performance of this product.
The sytem is a lightweight and fits into every pocket.
It was never so easy to carry your USB 3.1 duplicator around.
The master port is a "Read-Only" port. This means nobody can erase the data on your master device by accident.
With this feature we prevent loss of data by human error.
USB Quality Check:
You can check the quality of your USB devices with the USB3.1 duplicator very easy.
The quality check contains several inspection tool to perform mass quality testing.
Stand-Alone Operating System:
All our USB3.1 duplicators work FPGA-based. Due to no need of PC and OS we can reach the high performace and low error rates.

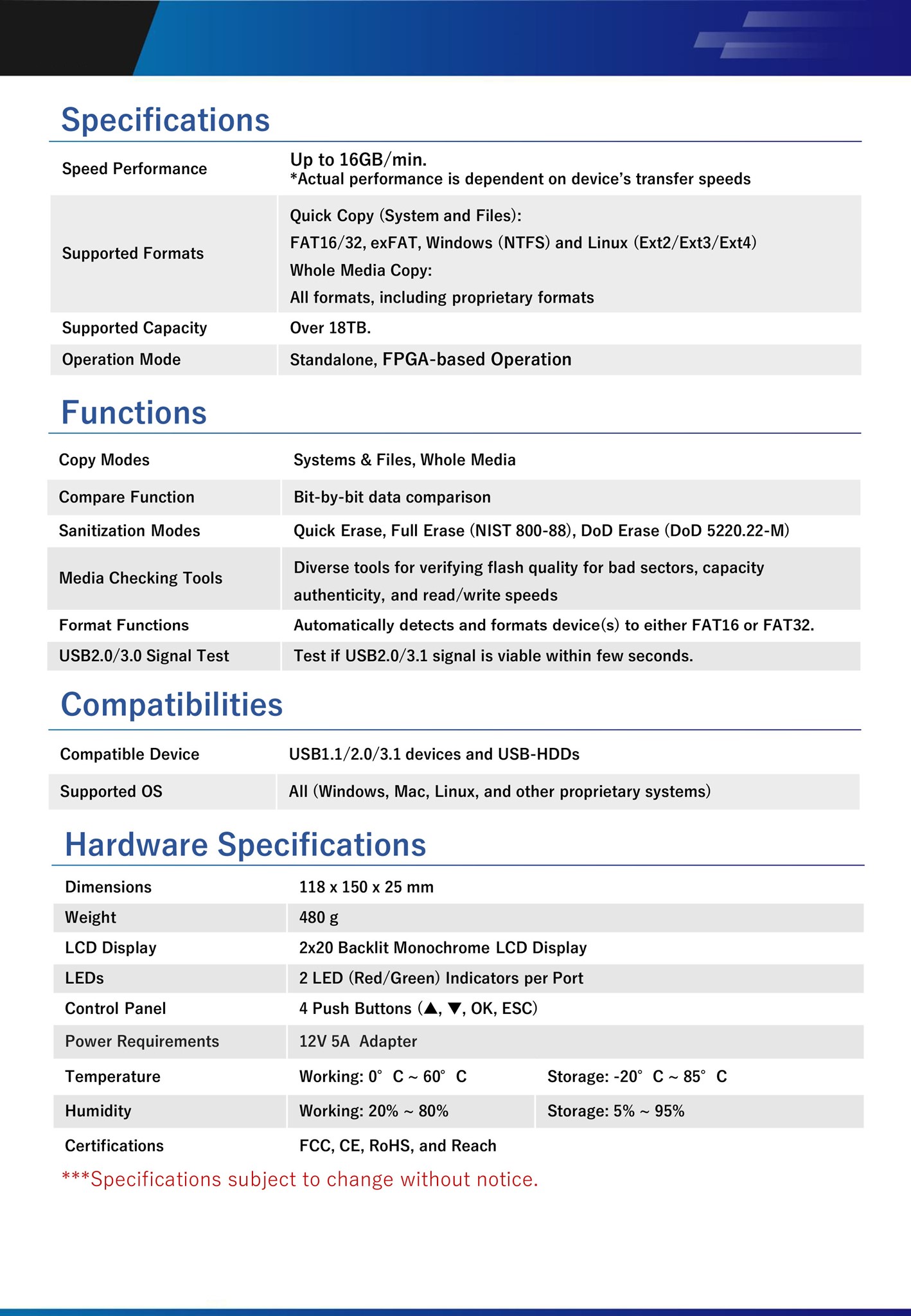

Speed performance: Up to 16GB/Min. (the real performance depends on the media and full setup)
Supported formats: Quick Copy: Fat16/32, exFAT, NTFS and Linux (Ext2/Ext3/Ext4) (can vary regarding your master/target devices)
Whole Media: All formats including proprietary formats
Supported capacity: 18TB
Operation Mode: Standalone FPGA based
Copy Modes: Quick Copy & Whole Media
Compare: Bit-by-bit compare process
3 Sanitization modes: Quick erase, Full erase (NIST 800-88), DoD Erase (DoD 5220.22-M)
Media Check: tools to verify flash quality for bad sectors, capacity check, read and write speeds
Format: automatically detects devices and formats to FAT16 or FAT32.
Signal: Checks if USB2.0 or 3.1 signal is available in seconds.
Compatible devices: USB1.0/2.0/3.1 devices and USB HDDs
Supported OS: All (Win, Mac, Linux and other proprietary systems)
Dimensions: 118 x 150 x 25 mm
LCD Display: 2x20 Backlit Monochrome LCD Display
LEDs: red & green LED for each port (fail & pass)
Controller: 4 Buttons to controll the USB3.1 duplicator
Power: 12V 5A power supply
Temperature: Working mode 0-60° Storage -20°-85°
Humidity: Working mode 20-80% Storage 5-95%
