Stop-bar system

 There are 2 Stop-bar system !

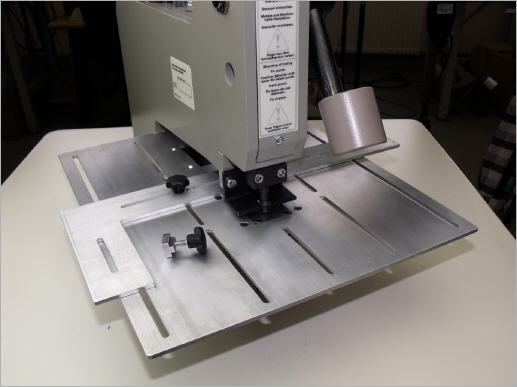

- P&T ASP plate Stop-bar system

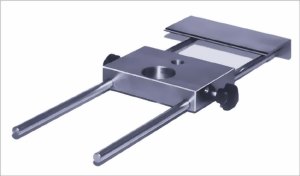

- P&T ASS small Stop-bar system

These Stop-bar-systems are new to the programme. .
Special features are the good guides and the excellent squareness.
Added to this is their variability, which offers a wide range of possible applications. The new cutting dies can also be used to produce exact cuts. They can also be used to perfectly cut out larger and polygonal cut-outs by sliding the component along a stop. The basic versions include the main rail, the stop and a die holder of your choice.

The P&T AP is ideal for notching and bevelled cuts at any angle. The P&T AP has a stop bracket that can be adjusted in any position using the sliding blocks supplied.

With the attachable measuring gauges (depth gauge), all lengths between the punch and stops can be measured exactly.
Further accessories are in preparation.
