Sub-D 9 / 15 / 25 / 50

With the D-Sub punching tool, you can quickly and precisely create these openings for plugs and sockets and the 3 mm fixing holes on the side in a single operation,
Special sizes on request.
Below are some examples of sockets and plugs.

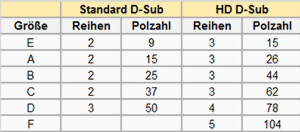

D-Sub 9 D-Sub 15 D-Sub 35 D-Sub 25

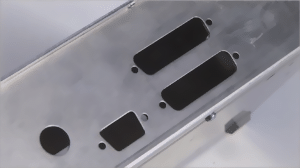

Fig: Housing manufactured with the D-Sub tool from Punch & Tool

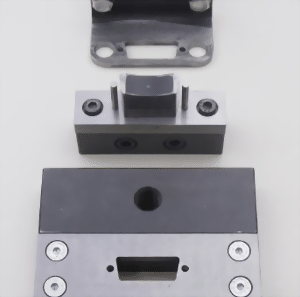

Hole punching tool for Sub D plugs and sockets
The PT-D-Subxx hole punch can also be used to punch hole patterns for 15 and 25-pin Sub D plugs by positioning it twice. However, this is very unfavorable and should only be carried out infrequently, as the punch can be damaged by the one-sided load, especially with very hard material such as VA.
An adjustable stop is required to ensure precise parallel punching and to avoid creating lugs on larger D-SUB 15, 25, 37 poles.
See under additions to the stop system

The price refers to one stamp and one die.
The hdownholder and/or the die holder must be ordered separately.
